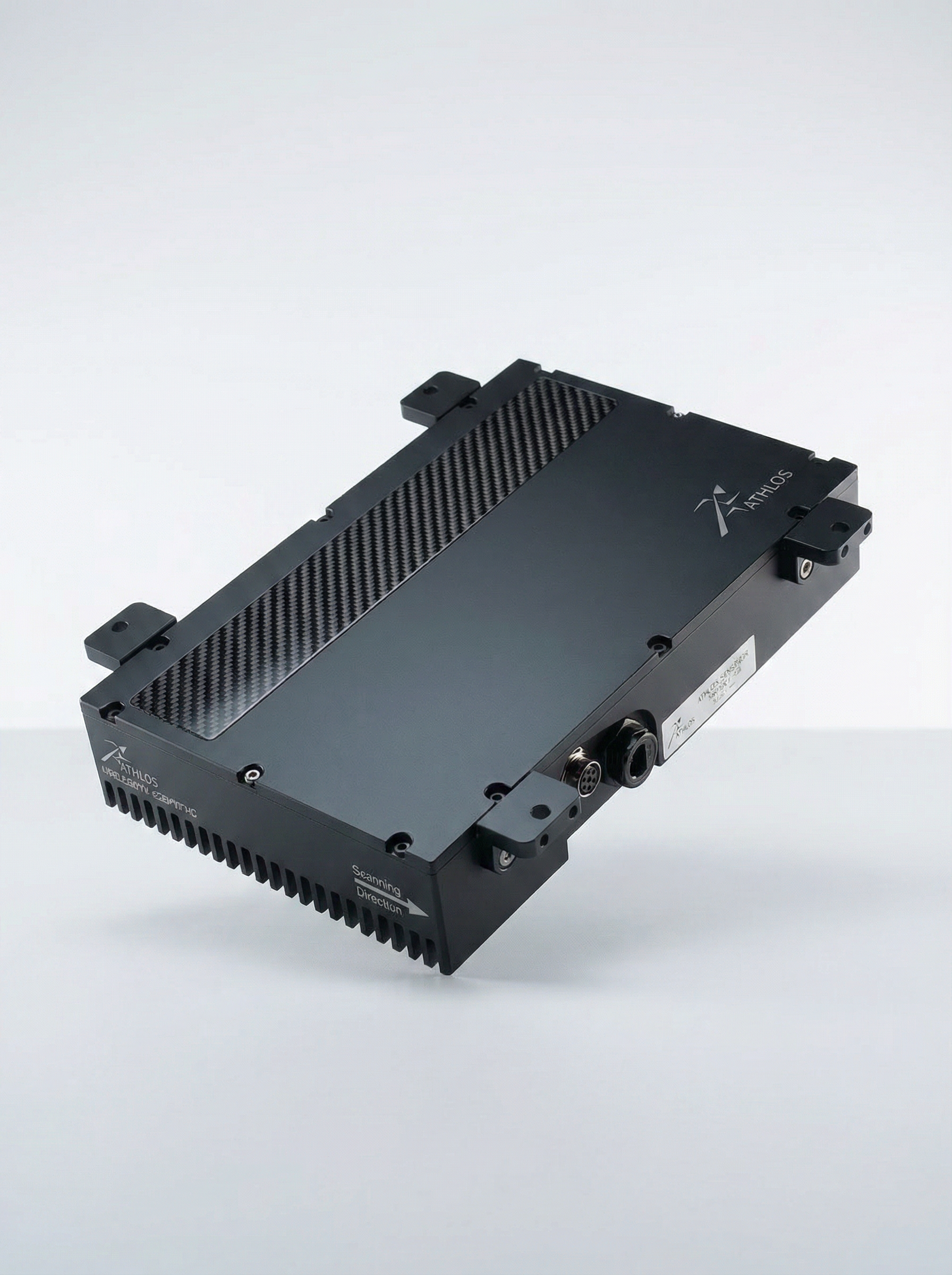

Industrial IP67 TDI
Rugged ultra-fast scanning X-ray imaging for demanding industrial inspection environments.
Overview
Industrial-grade.
No cooling required.
Industrial IP67 TDI is an industrial linear detector array built for fast scanning applications in harsh and continuous-use environments. IP67 protection, no active cooling, and ruggedized direct conversion CdTe imaging — engineered for inline inspection workflows where uptime, sensitivity, and long-duration stability matter.
Unlike detector systems that rely on Peltier cooling to manage sensor temperature, Industrial IP67 TDI operates without active cooling across its full operating range due to its very low power consumption and patented embedded dynamic offset calibration algorithm.
TDI mode operation enables line rates up to 75,000 lines per second — supporting scanning speeds that match the demands of high-throughput production inspection.
Key Features
Engineered for the hardest conditions.
IP67 Rugged Enclosure
Fully sealed industrial enclosure rated IP67. Designed for environments with dust, moisture, vibration, and continuous operation demands that would disqualify lab-grade detectors.
No Active Cooling
No Peltiers, no cooling circuits. Industrial IP67 TDI operates within its full specification across 10–40 °C without active thermal management — reducing system complexity and failure modes. This is enabled by very low power consumption and the embedded dynamic offset calibration algorithm.
Ultra-Fast TDI Scanning
TDI mode with line rates up to 75,000 lps. Designed for very high scanning speeds — 30 m/min at 100 µm, 240 m/min at 200 µm, and up to 1920 m/min at 400 µm resolution (or 115 km/h scanning speed).
Direct Conversion CdTe
CdTe direct conversion imaging with 28 TDI stages. Exceptionally high sensitivity, wide energy range (10–360 kV), and 16-bit dynamic range for demanding inspection applications. We also offer a custom solution for LINACs for use at energies up to 9 MeV.
High Contrast & Sensitivity
Single-photon-sensitive TDI performance. Superior contrast resolution enables reliable detection of small foreign objects, fine structural defects, and low-attenuation features.
Gigabit Ethernet
Standard GigE interface. 9–24 V DC power supply range. Straightforward integration into industrial system architectures and control environments.
Scanning Speed
Resolution and speed
across the full range.
Technical Snapshot
Designed around the application.

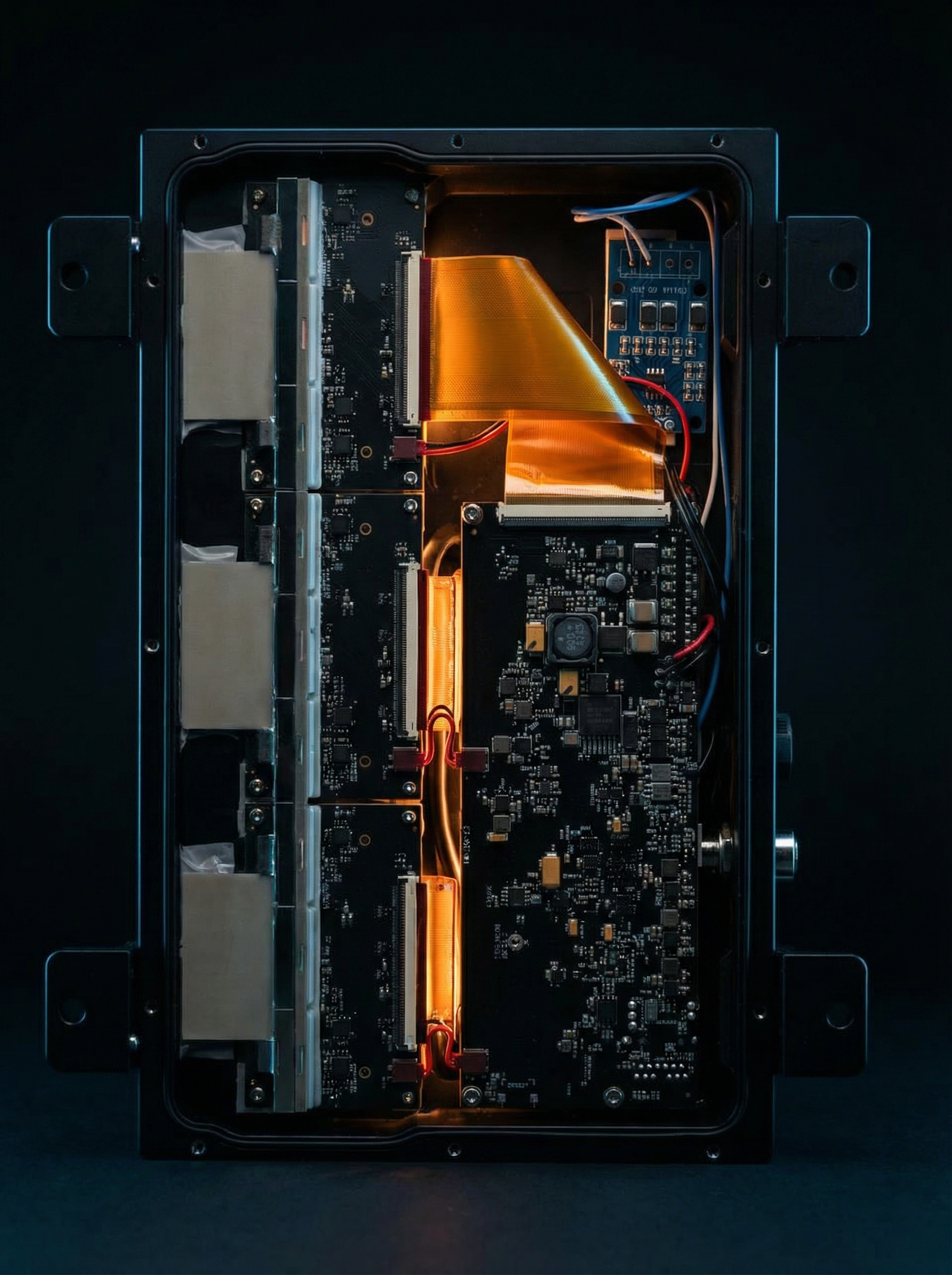

Industrial IP67 TDI is available in three model variants — UFS-150IP67NC-44, UFS-225IP67NC-44, and UFS-460IP67NC-44. All share the same fundamental architecture: direct conversion CdTe imaging with 28 TDI stages, IP67 enclosure, and Gigabit Ethernet interface.
Custom solutions available: the modular architecture allows Athlos to provide custom active lengths from 7.5 cm up to 10 m in 7.5 cm increments. Contact us to discuss your active length requirement.
Applications
Where Industrial IP67 TDI performs.
Industrial IP67 TDI is deployed in demanding inline inspection environments across multiple industries — wherever speed, image quality, and enclosure durability are all required simultaneously.
Food & Beverage
- Foreign object detection
- Seal integrity inspection
- Fill-level verification
- Object counting
Pharmaceutical
- Non-destructive product testing
- Foreign object detection
- Seal and fill-level inspection
- Product safety and quality
Oil & Gas · Nuclear
- Pipe inspection for cracks and inclusions
- Weld inspection
- Industrial CT
- Corrosion assessment
Automotive
- Tire quality inspection
- Metal casting inspection
- Metal part integrity
- Assembly verification
Electronics
- Reel component inspection
- Component counting
- PCB inspection
- Surface-mount assembly verification
Heavy Industry
- Structural weld inspection
- Pipe porosity and crack detection
- Industrial CT applications
- Large-scale NDT
Image Quality

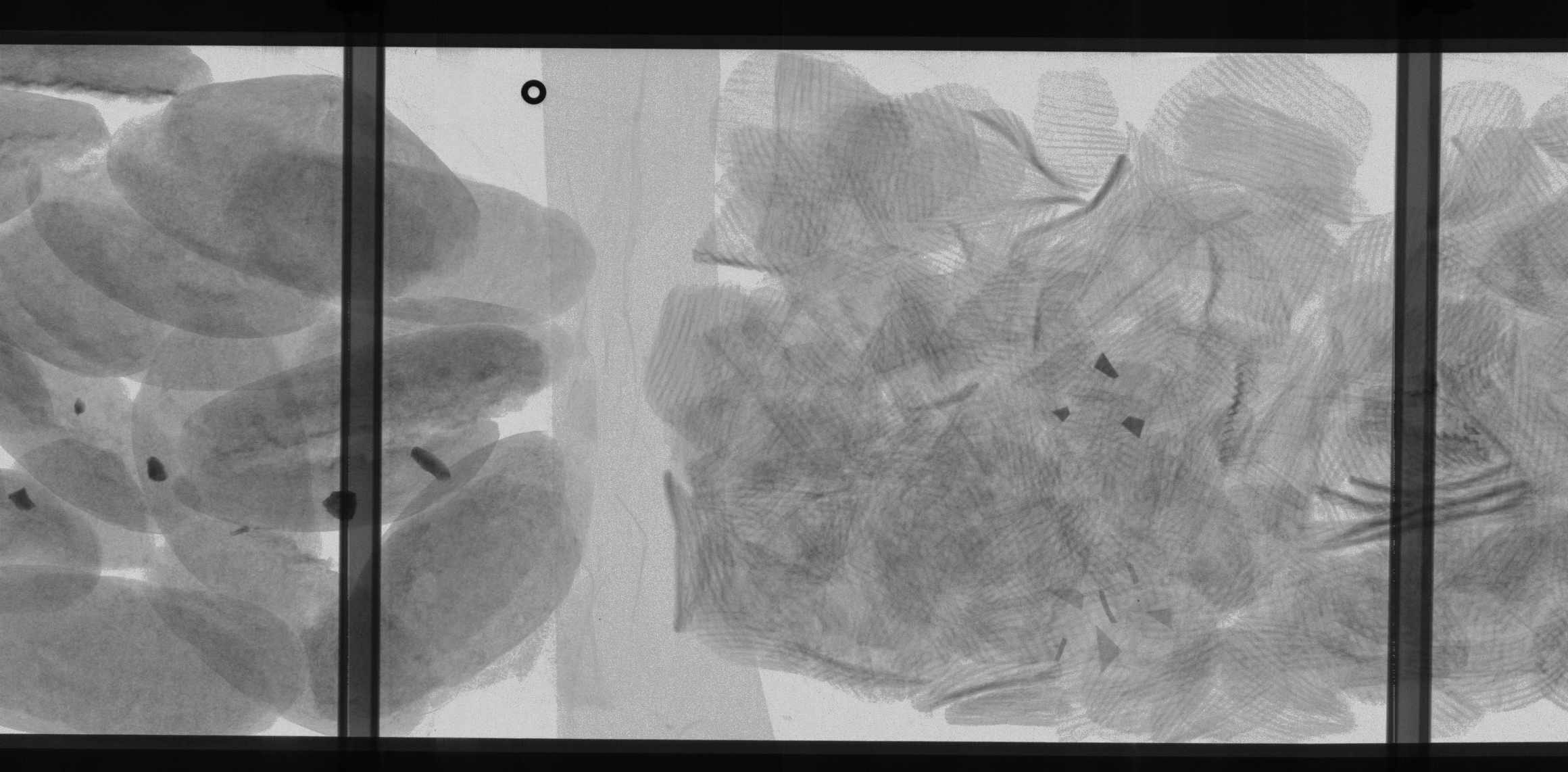

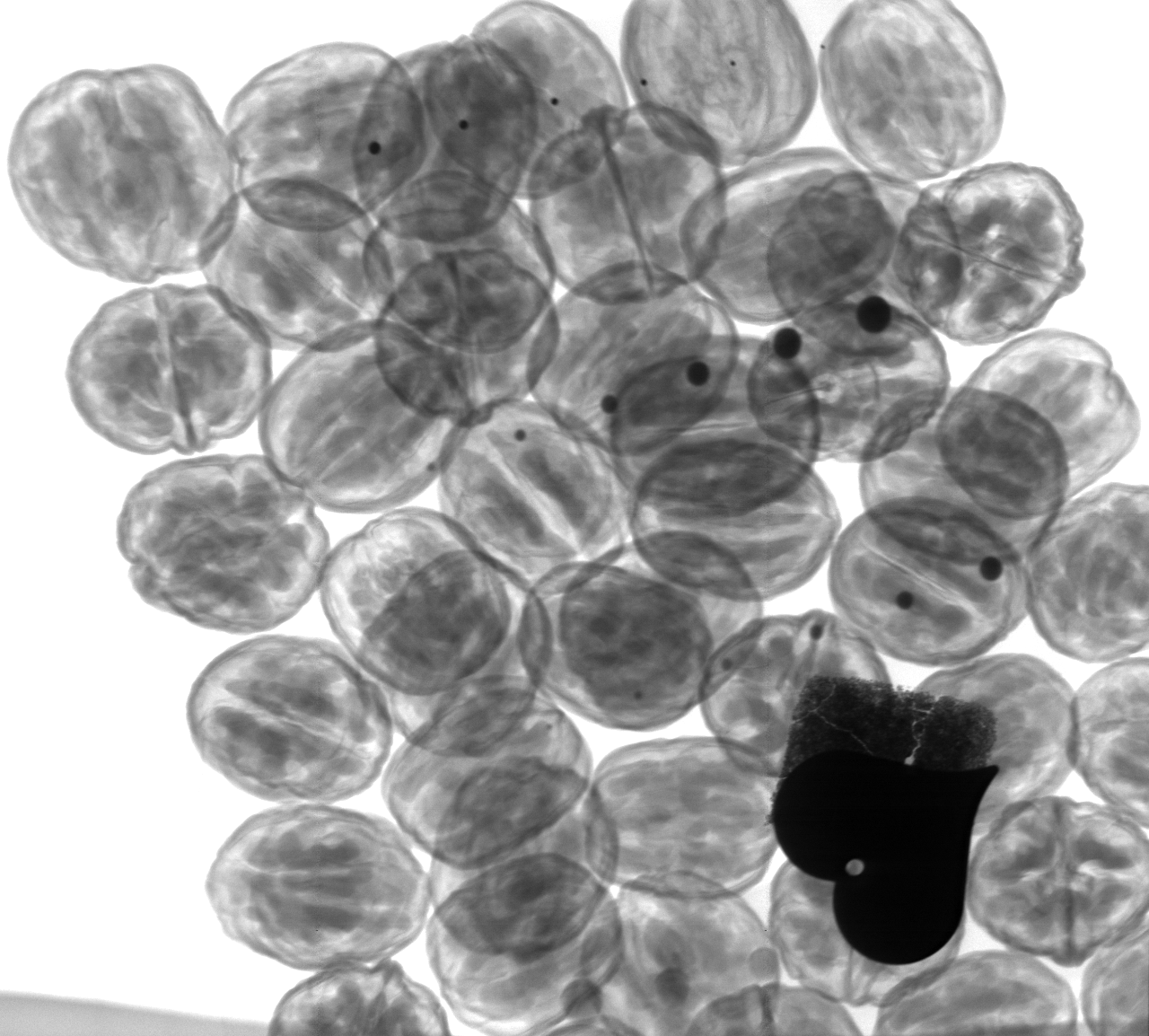

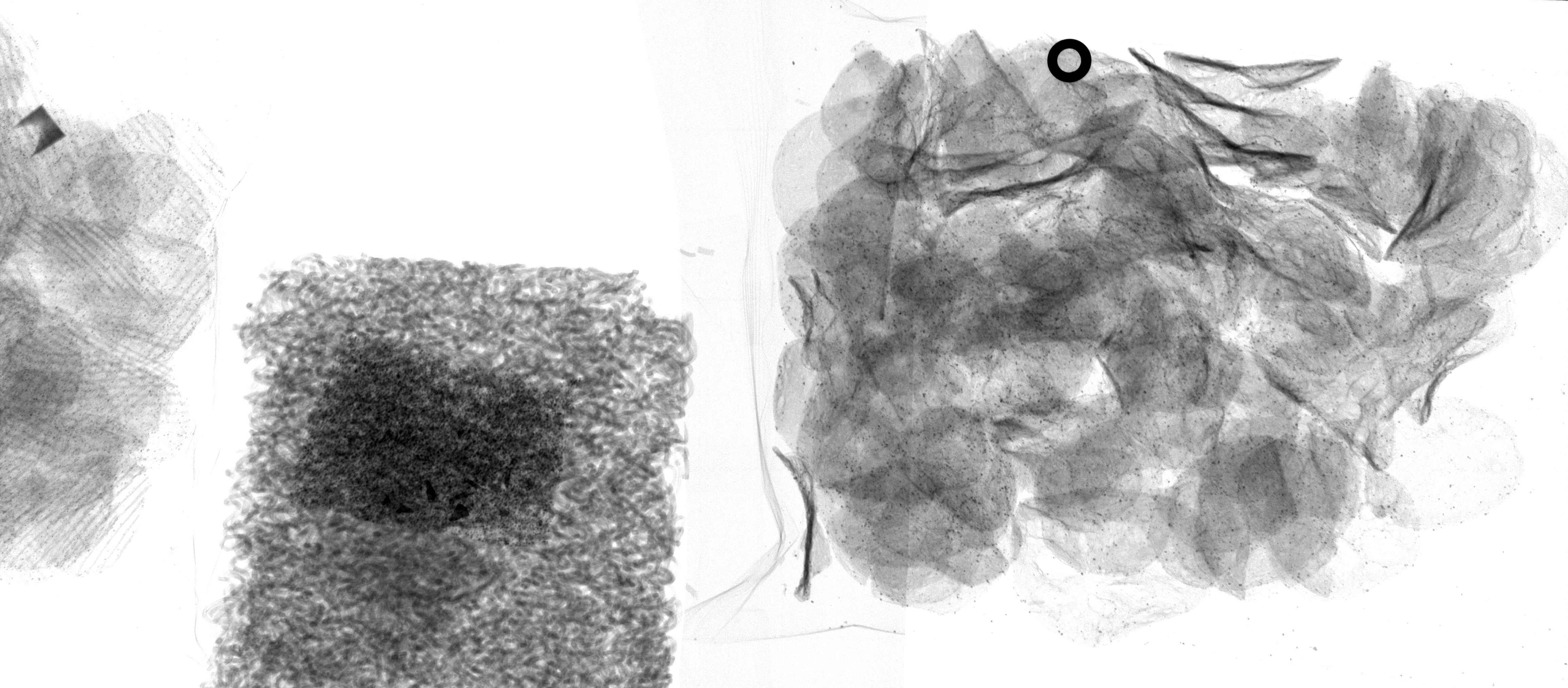

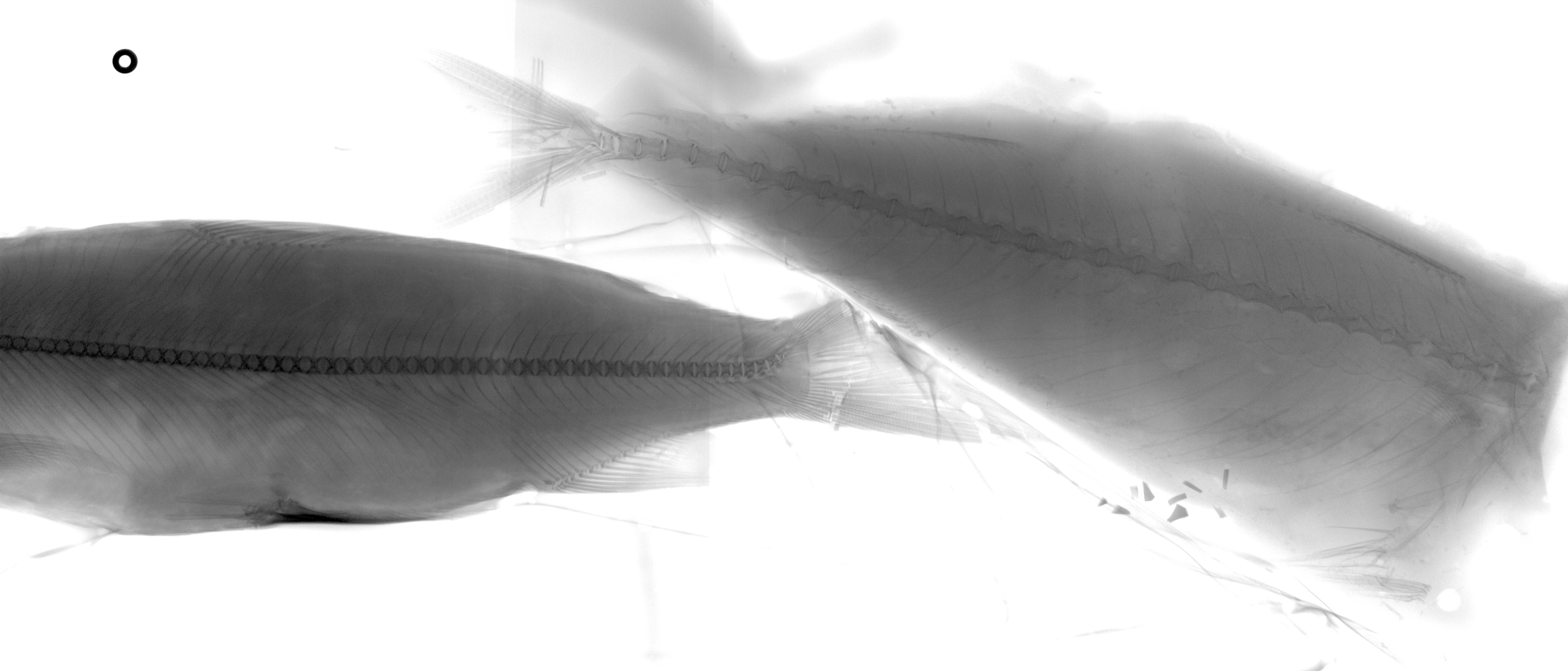

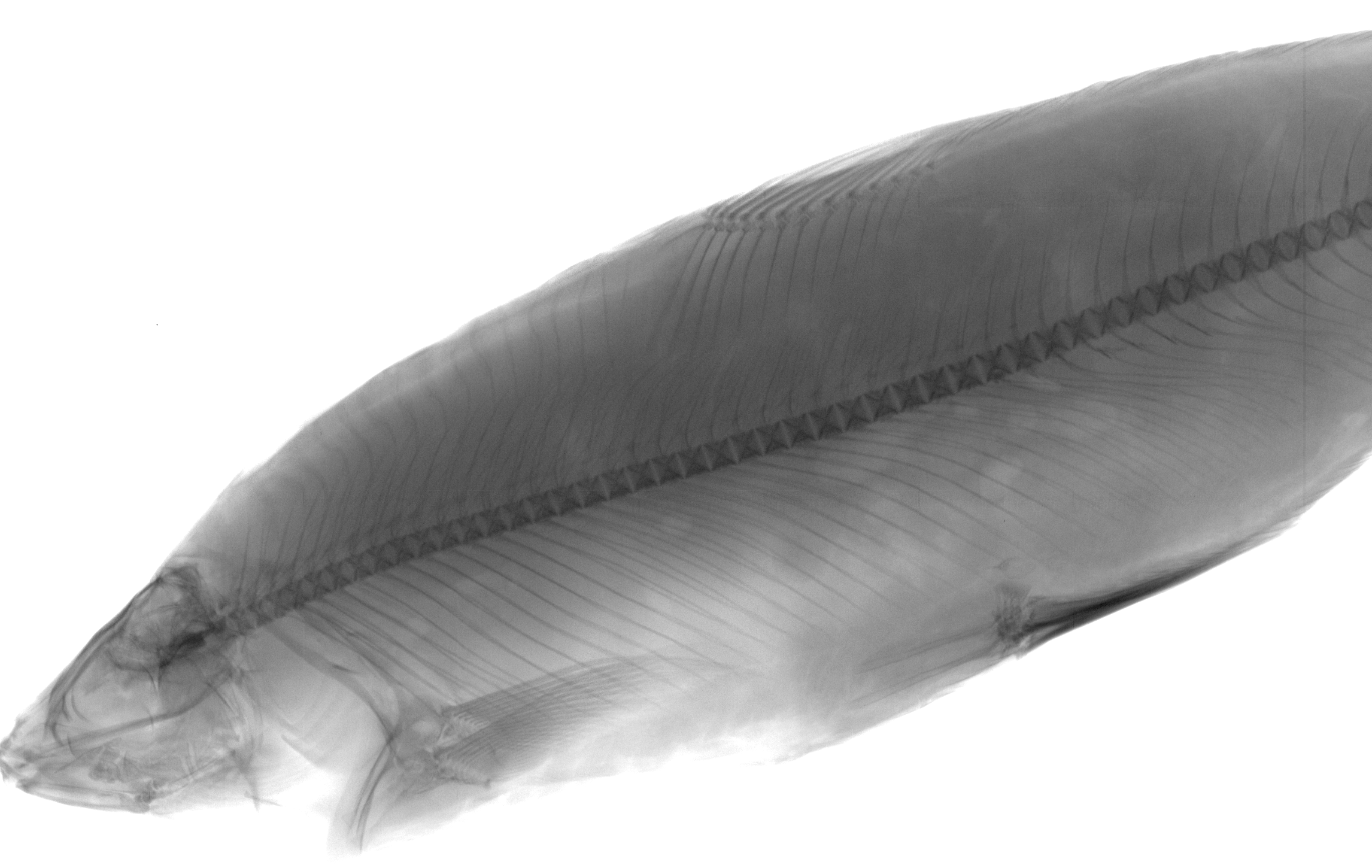

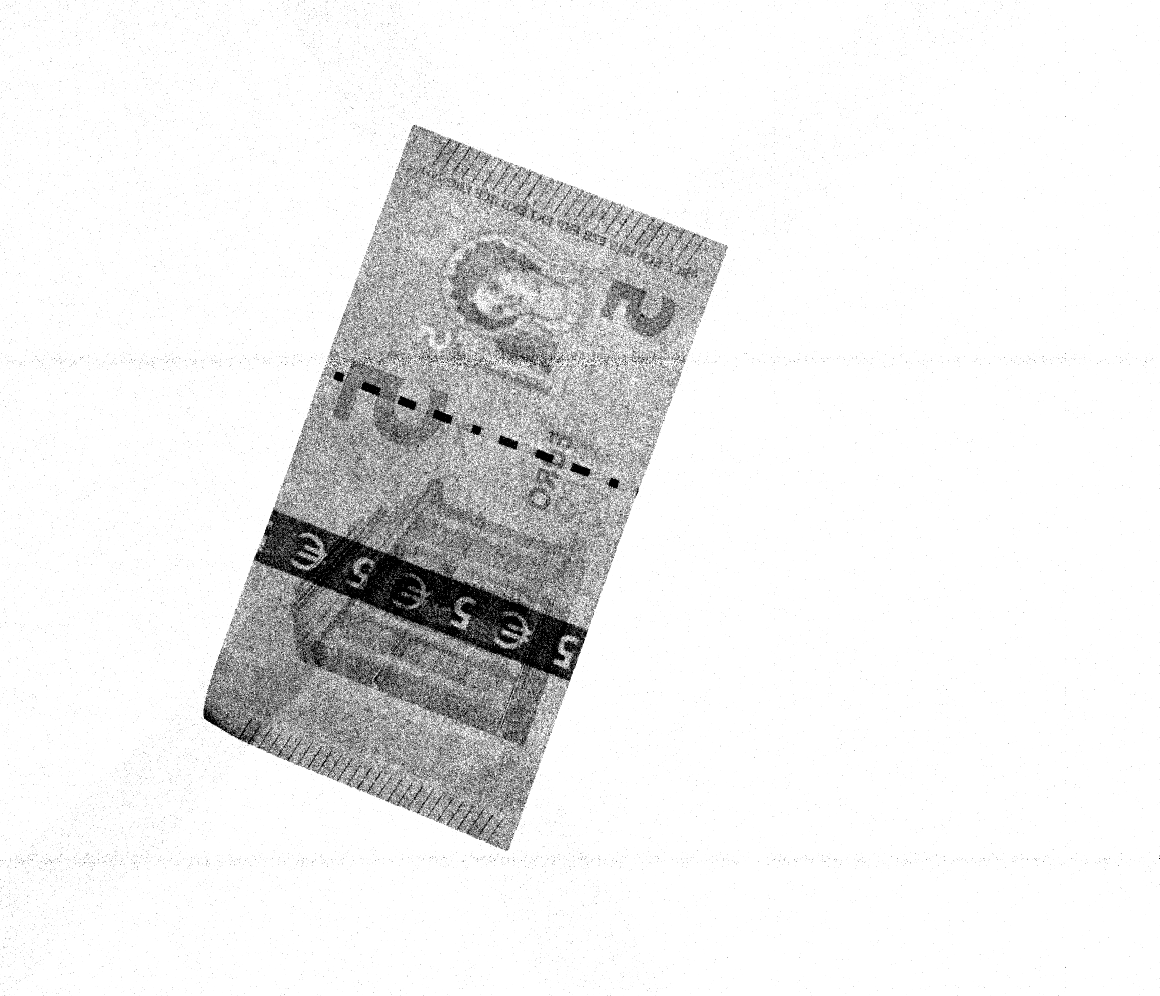

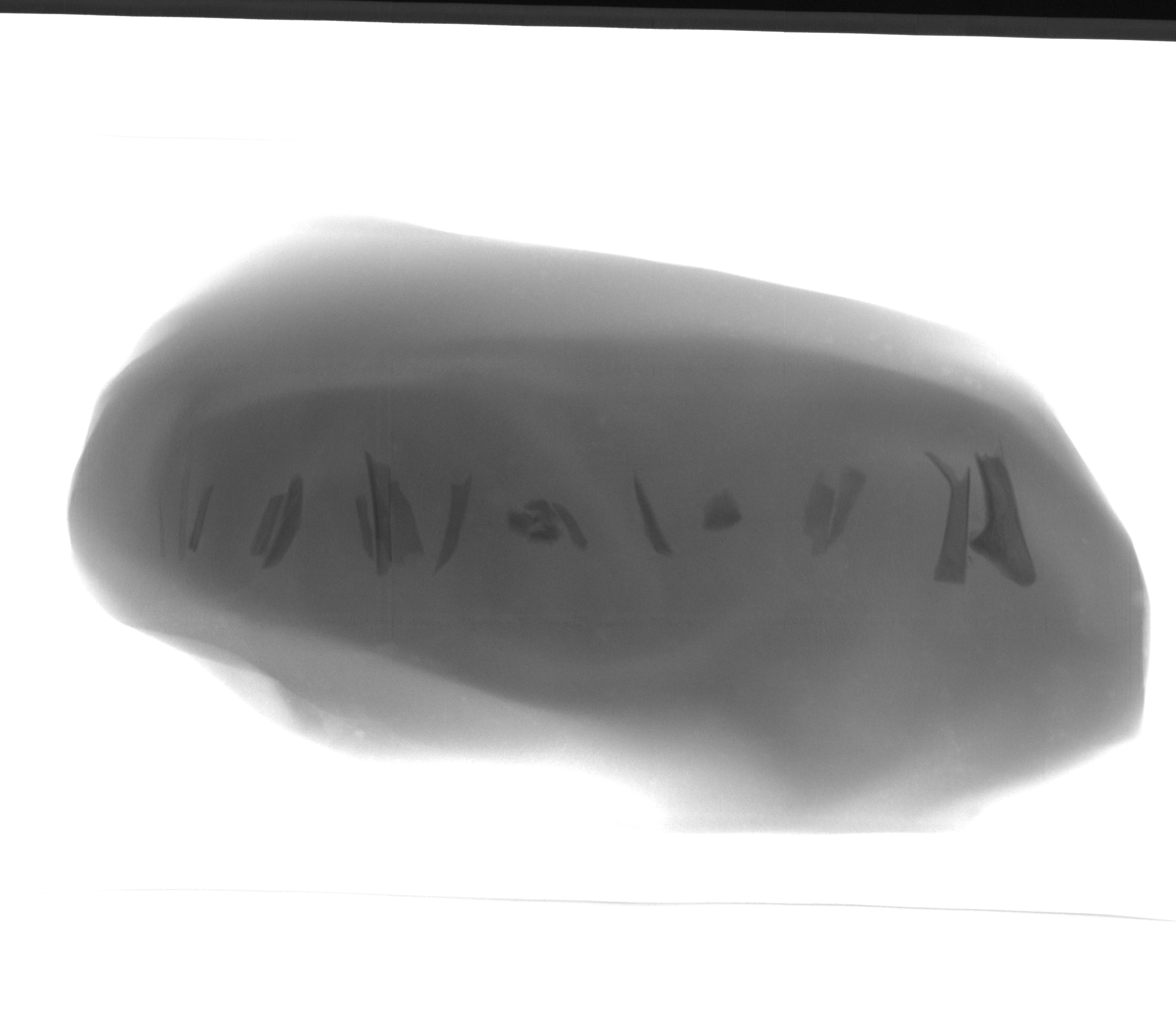

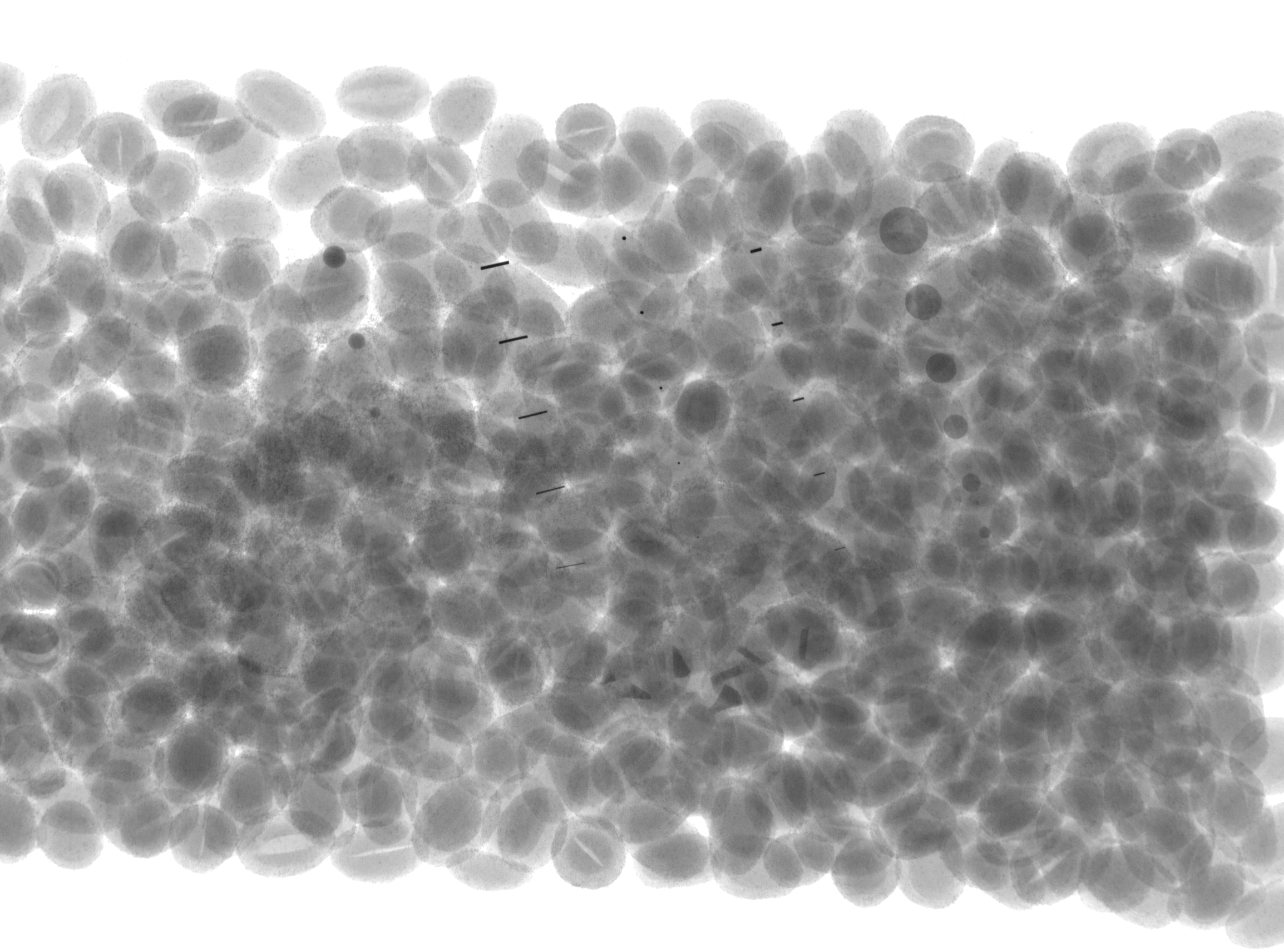

Inline inspection X-ray examples.
Product Family
Three variants.
Same rugged core.
Compact 15 cm active length.
Compact 23 cm active length.
Compact 46 cm active length.
Custom active length to meet application requirements. One module has three 25.6 mm hybrids; the module's active length is 76.8 mm. Any active length is available from 76.8 mm to 10 m.
The three standard configurations are available for near-immediate delivery. Custom active lengths can be manufactured to meet specific application requirements — contact Athlos to discuss your sizing needs.
